Lancaster Petrol
And Oil Capacities And
System Diagrams
Petrol
Capacity: - 2,154 UK
Imp. gal. (9,792 L) located in six (6) main tanks (three in
each wing).- No. 1 Tank holding 580 Imp. gal. (2637 L) located
between the main fuselage and the inner engine.
- No. 2 Tank holding 383 Imp. gal.
(1741 L) located between the inner and outer engines.
- No. 3 Tank holding 114 Imp. gal.
(518 L) located in the wing tip.
View

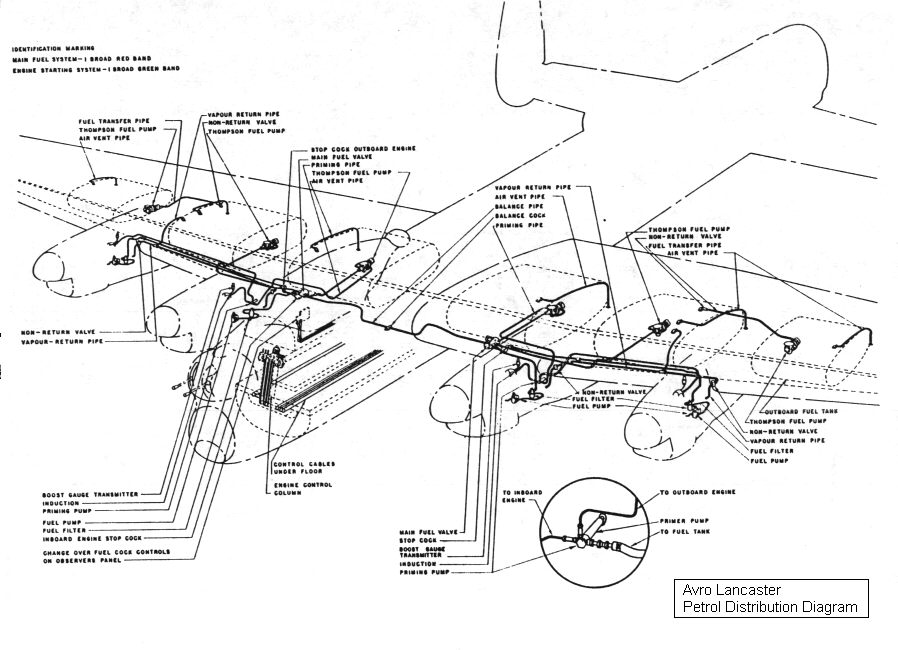

Diagram of Petrol Distribution System.
Oil
Capacity: - 100 Imp.
gal. (455 L) per engine.
View

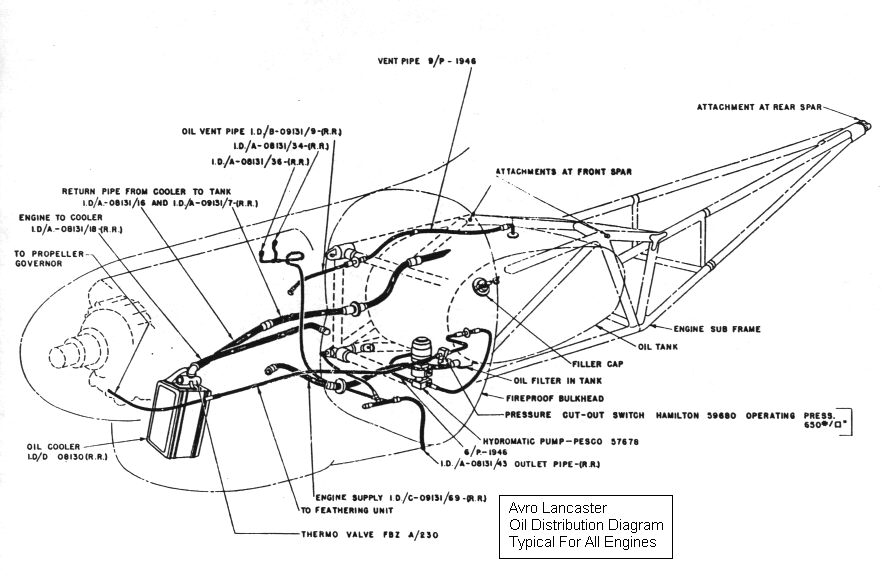

Diagram of Oil Distribution System. |
