Lancaster Defensive Armament


The standard Lancaster armament consisted of three gun turrets - Front, Mid Upper and Rear.

Early Lancaster's also were also equipped with a Ventral (mid-lower) Turret. Although some production Lancaster's reached the squadrons with this turret installed. It was soon decided, by those not flying the aircraft in hostile skies, that the turret was almost useless; and it was soon removed from both the operational aircraft and those still on the production lines.

The deletion of the ventral turret however, left the aircraft underside undefended and blind. More than one Lancaster would fall victim to a night-fighter approaching, undetected, from underneath.

It should be noted that the approximate location of the ventral turret was eventually used for the H2S radar assembly. Some squadron's took it upon themselves, to install a single 0.50 caliber machine gun in the position.

Late in the war, the Lancaster's lacking in defensive armament finally began to be corrected. Aircraft began to arrive with two 0.50 Cal. machine guns located in both the Rear and Mid-Upper turret positions. Although, the 0.50 caliber had a far greater range and more destructive hitting force than that of the 0.303, it still did not equal the German 20mm (0.75") cannons which were installed in most night-fighter aircraft.


Front Turret

Manufacturer :
Fraser-Nash
Model :
FN-5
Power transmission :
Hydraulic
Source of power:
Engine Drive Pump
Hydraulic pressure :
300 lb. per sq. inch.
Field of fire :
Azimuth -184 deg.
Elevation - 60 deg.
Depression - 45 deg.
Armament :
Two - 0.303 Machine Guns
Firing control mechanism :
Palmer hydraulic
Gun Sight :
Free gun reflector sight Mk. III, Mk. III A, Mk. III N

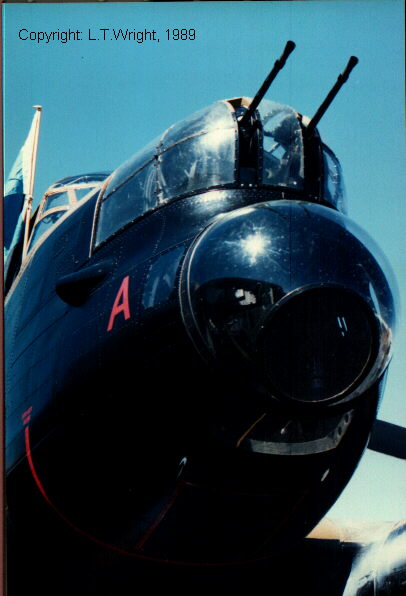

View photo of front turret.


Mid Upper Turret
Manufacturer :
Fraser-Nash
Model :
FN-50
Power transmission :
Hydraulic
Source of power:
Engine Drive Pump
Hydraulic pressure :
300 lb. per sq. inch.
Field of fire :
Azimuth -360 deg.
Elevation - 60 deg.
Depression - 45 deg.
Armament :
Two - 0.303 Machine Guns
Firing control mechanism :
Electro-Hydraulic
Gun Sight :
Free gun reflector sight Mk. III, Mk. III A, Mk. III N

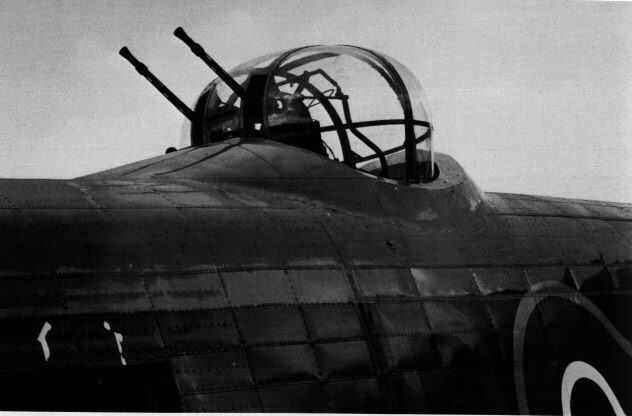

View photo of mid upper turret.


Ventral (Mid-Lower) Turret
Manufacturer :
Fraser-Nash
Model :
FN-21
Power transmission :
Hydraulic
Source of power:
Engine Drive Pump
Hydraulic pressure :
300 lb. per sq. inch.
Field of fire :
Azimuth -360 deg.
Elevation - 25 deg.
Depression - 90 deg.
Armament :
Two - 0.303 Machine Guns
Firing control mechanism :
Palmer hydraulic
Gun Sight :
Free gun reflector sight Mk. III A, Mk. III N

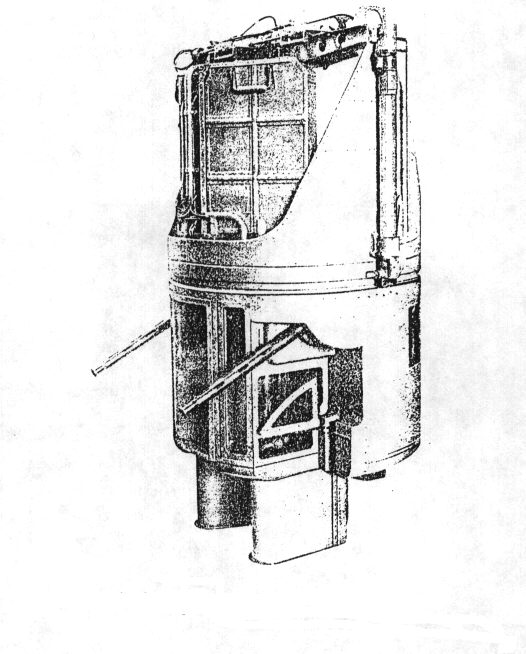

View sketch of ventral (mid-lower) turret.


Rear Turret
Manufacturer :
Fraser-Nash
Model :
FN-20 or FN-121 Mk.I
Power transmission :
Hydraulic
Source of power:
Engine Drive Pump
Hydraulic pressure :
300 lb. per sq. inch.
Field of fire :
Azimuth -168 deg.
Elevation - 60 deg.
Depression - 45 deg.
Armament :
Four - 0.303 Machine Guns
Firing control mechanism :
Palmer hydraulic
Gun Sight :
FN-20 - Free gun reflector sight Mk. III A, Mk. III N
FN-121 Mk.I - Free gun reflector sight Mk. IIIA, Mk. IIIN or G.G.S. Mk. II C

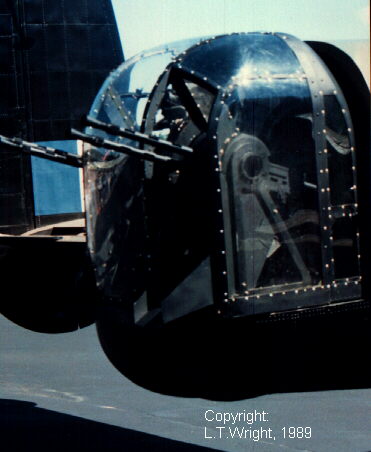

View photo of rear turret.
